THE FC SERIES  WAS DEVELOPED TO HELP ELIMINATE SOME OF THE PROBLEMS ENCOUNTERED WHEN ANALYZING SIZE AND SHAPE PARAMETERS, IN PARTICLES SUSPENDED IN A LIQUID OR SLURRY, MOST NOTABLY PARTICLES THAT ARE TOO SMALL, OR OPAQUE, TO REGISTER WITH STANDARD LASER DIFFRACTION, OR ,"WHITE LIGHT" DIGITAL IMAGING DEVICES.
NEW HIGH RESOLUTION IMAGING TECHNOLOGY
The new high resolution imaging technology, is accomplished in part, by using special backlighting techniques focused from behind the sample. An adjustable range, monochromatic, blue light source has been shown to provide optimal contrast conditions for the particles, and virtually eliminate diffraction. The light is collimated, and acts as a high definition caliper. In the case of liquids and suspensions, the light flashes simultaneously with a high speed, high definition camera, for extremely robust particle definitions.

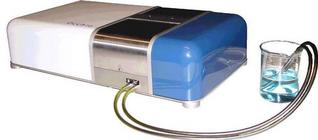

FC SERIES (FLOW CELL) PARTICLE CHARACTERISTIC ANALYZERS FOR PARTICLES SUSPENDED IN LIQUID
MONOCHROMATIC COLLIMATED BACKLIGHT ACTS LIKE A CALIPER, AND PROVIDES RESOLUTION UNATTAINABLE WITH WHITE LIGHT OR LASER DIFFRACTION
TELECENTRIC LENS- IMAGE MAGNIFICATION IS INDEPENDENT OF THE OBJECTS DISTANCE OR POSITION IN THE FIELD OF VIEW
NEW ADVANCES IN HIGH RESOLUTION IMAGING!
Email Address
First Name
Company
Telephone
Last Name
INFORMATION REQUEST
Notes
SAMPLE TYPE:
PARTICLES SUSPENDED IN LIQUIDS AND         SENSITIVE TO BREAKAGE
WET 800 nm to 1 mm

SAMPLE TRANSPORT METHOD:
PARTICLES < 500 microns MEMBRANE PUMP
PARTICLES  > 500 microns PERILSTATIC PUMP
SAMPLE TYPE:
PARTICLES SUSPENDED IN LIQUID
FOR SMALLER PARTICLES
WET 200 nm to 1 mm

SAMPLE TRANSPORT METHOD
SYRINGE PUMP
HIGH RESOLUTION OPTION AVAILABLE
10 MILLION PIXELS
HIGH RESOLUTION OPTION AVAILABLE
10 MILLION PIXELS
MAGNETIC STIRRER KEEPS PARTICLES IN SUSPENSION
    OCCHIO FC200 SERIES FOR LIQUIDS AND SLURRIES
SPECIFICATIONS, BROCHURE VIDEO
SPECIFICATIONS, BROCHURE VIDEO

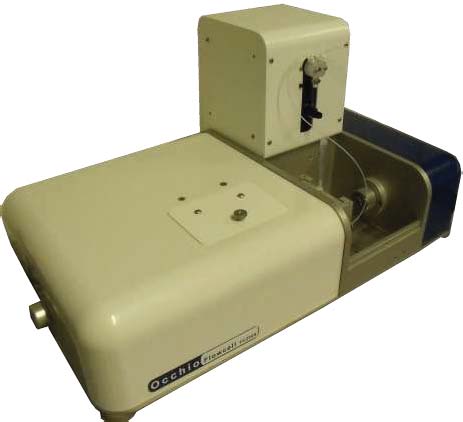

FC200M                                                                                FC200S                                                                               FC200S IPAC
SAMPLE TYPE:
PARTICLES SUSPENDED IN LIQUID
FOR SMALLER PARTICLES
WET 200 nm to 1 mm

SAMPLE TRANSPORT METHOD
SYRINGE PUMP

ADAPTED FOR PROTEIN AGGREGATE COUNTING AND ANALYSIS

HIGH RESOLUTION OPTION STANDARD
NEW FOR BIOTECH
SPECIFICATIONS, BROCHURE VIDEO

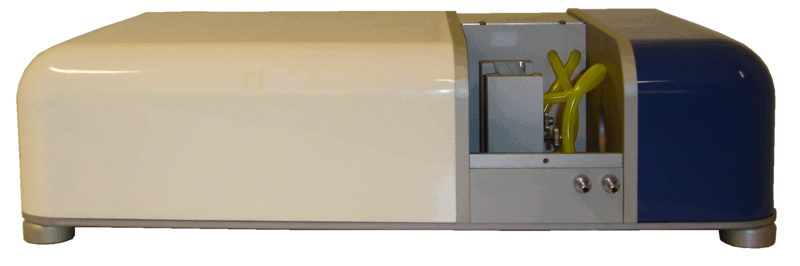

MEMBRANE PUMP FOR PARTICLES
SENSITIVE TO BREAKAGE
SYRINGE PUMP FOR
EXTREME PRECISION SAMPLING
PURPOSE SPECIFIC PUMPS

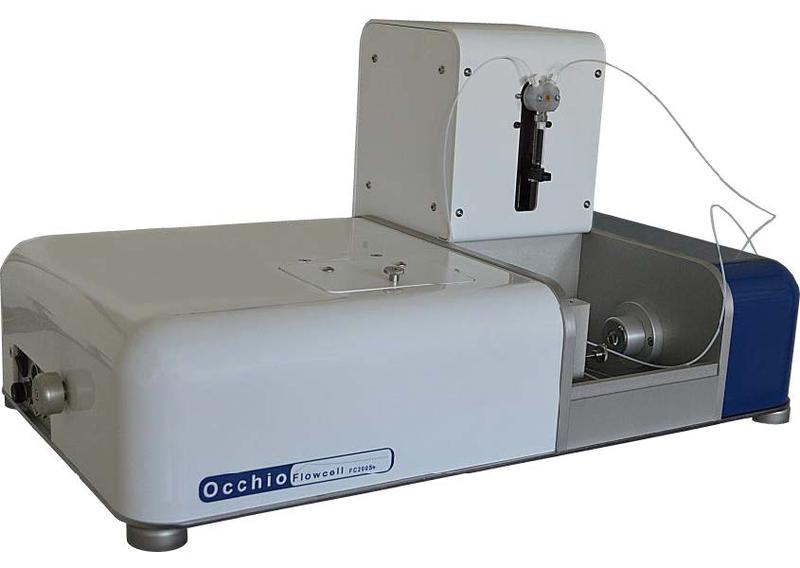

FC200S SLURRY
SAMPLE TYPE:
PARTICLES SUSPENDED IN LIQUIDS
FOR LARGER PARTICLES
WET 200 NM TO 10 CM
SAMPLE TRANSPORT METHOD:
SYRINGE PUMP
ADAPTED FOR PROTEIN AGGREGATE COUNTING AND ANALYSIS

HIGH RESOLUTION OPTION
SPECIFICATIONS, BROCHURE VIDEO
