500 NANO PARTICLE CHARACTERIZATION SYSTEM FOR SMALL PRECISE AMOUNTS OF FINE POWDERS FROM 200 nm
SAMPLE TYPE:
VERY FINE POWDERS
DRY 400 nm to 2 mm

SAMPLE TRANSPORT METHOD:
SPECIAL NON DESTRUCTIVE VACUUM
PUMP AND TEAR ABLE MEMBRANE DISPERSION

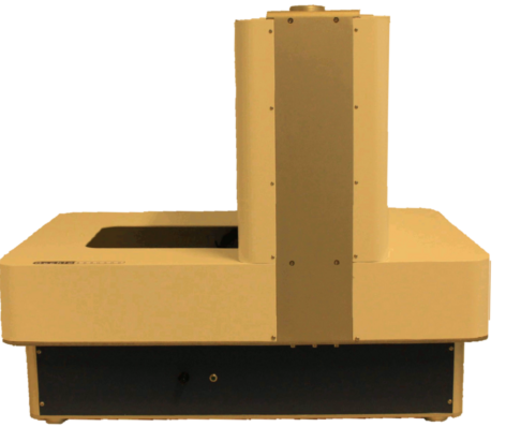

500 NANO POWDER ANALYZER
Occhio Digital Imaging Analyzers are uniquely suited for particle size, shape, and distribution
analysis, in the range of 200 nm to 3.0 mm. Depending on the size of the particles to be analyzed,
what form they are in, ie...liquid or solid, and the volume of the sample, different dispersion  techniques are employed relative to the required throughput, to provide optimal conditions for image capture.
The 500 NANO Analyzer is specifically designed for static, non destructive analysis of low volumes (Down to 1 ml) of very fine powders. The sample is placed in a small cup with a tearable membrane floor.
​A special vacuum pump is then used to tear the membrane, and deposit millions of particles on a glass slide, in just a few seconds.
The integrity of the powder is maintained, while agglomerates are gently dissociated, providing good orientation, and natural sedimentation on the glass slide.
SPECIAL DISPERSION CUP ALLOWS FOR SAMPLES AS SMALL AS 1ml TO BE ANALYZED.
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
866-244-1578 | [email protected]
www.occhio-usa.com
500 NANO PHARMA PARTICLE CHARACTERIZATION SYSTEM
500 NANO XY PARTICLE CHARACTERIZATION SYSTEM
SAMPLE TYPE:
VERY FINE POWDERS
DRY 400 nm to 2 mm / 3 mm XY


SAMPLE TRANSPORT METHOD:
SPECIAL NON DESTRUCTIVE VACUUM
PUMP AND TEAR ABLE MEMBRANE DISPERSION
500 NANO P POWDER ANALYZER
SAMPLE TYPE:
VERY FINE POWDERS
DRY 400 nm to 2 mm / 3 mm XY
WET 400 nm micron to 1 mm (XY ONLY)

SAMPLE TRANSPORT METHOD:
SPECIAL NON DESTRUCTIVE VACUUM
PUMP AND TEAR ABLE MEMBRANE DISPERSION
500 NANO SERIES THREE SEPARATE SYSTEMS FOR PARTICLE CHARACTERISTIC APPLICATIONS WITH FINE POWDERS
NEW! NANO XY
WITH REMOVEABLE FLOWCELL FOR THE ANALYSIS OF PARTICLES  SUSPENDED IN LIQUID
OCCHIO CALLISTO tm PHARMA SOFTWARE
COMPLETE REPORT GENERATION CAPABILITIES

21 CFR Part 11 Compliant
PRODUCT DEMONSTRATION
DIGITAL IMAGING EQUIPMENT FOR PARTICLE CHARACTERIZATION IN LIQUIDS, POWDERS, AND SOLIDS
HOMECONTACT USPRODUCTS

OCCHIO DIGITAL IMAGE ANALYZERS HAVE THE ABILITY TO DETECT AND QUANTIFY BOTH PARTICLE SIZE AND PARTICLE SHAPE, PAVING THE WAY FOR THE ADVANCED ANALYSIS OF PARTICLES IN BOTH LIQUID AND SOLID FORMS.

CORRELATIONS TO OTHER PARTICLE SIZE ANALYSIS METHODS, LIKE SIEVE ANALYSIS AND LASER DIFFRACTION, ARE SEAMLESSLY EMPLOYED. EVEN SHAPE PARAMETERS LIKE LENGTH, FLATNESS, AND ANGULARITY IN AGGREGATES, OR THE LENGTH OF STRINGY PARTICLES LIKE SHREDDED CHEESE, OR TOBACCO, ARE POSSIBLE.

ONCE A BASIC CORRELATION HAS BEEN ESTABLISHED, THE RESULTS ARE FINE TUNED WITH THE OCCHIO CORRELATION PROGRAM, ALLOWING FOR TURNKEY SOLUTIONS TO PARTICLE CHARACTERIZATION.
500 NANO SERIES500 NANO500 NANO PHARMA500 NANO XYCOFFEEE-TRAKFLOWCELL SERIES
FC200 IPACFC200MFC200SCMPSLURRYFC200SHRMORPHO 3-DPHARMA SCANNER
SIEVECALZEPHYR SERIESZEPHYR ESRZEPHYR LDAZEPHYR LDA COFFEE-TRAK

DIGITAL IMAGE ANALYZERS
DOWNLOADS
DIGITAL  PARTICLE
CHARACTERIZATION THEORY
EFFECTS OF DIGITIZATION
ON PARTICLE CHARACTERIZATION
AVAILABLE SIZE AND
SHAPE PARAMETERS
SAMPLE
CHARACTERISTICS

DISPERSION METHODS DESIGNED TO MAINTAIN PARTICLE INTEGRITY
GRANULAR MATERIALS,
POWDERS, LIQUIDS

MORPHO 3D

DRY GRANULAR MATERIALS
SIZE RANGE 500 µm – 10,000 µm
EXAMPLES TABLETS, SEEDS, BEADS
3 DIMENSIONAL ANALYSIS
DISPERSION METHOD
FEEDING HOPPER & CONVEYOR BELT
ZEPHYR LDA

DRY POWDERS & GRANULARS
THAT TRAVEL WELL IN FLIGHT
7 µm – 5,000 µm
EXAMPLES SUGAR / COFFEE / SAND
DISPERSION METHOD
VIBRATING HOPPER WITH
HORIZONTAL VACUUM DISPERSION
 (FASTER ANALYSIS TIME)

LIQUID ANALYSIS FLOWCELL ACCESSORY
PARTICLES SUSPENDED IN LIQUID
1 µm – 3,000 µm
ZEPHYR ESR2

DRY GRANULARS HEAVIER PARTICLES
30 µm – 30,000 µm
GRAVEL, WOOD CHIPS, SAND
COFFEE BEANS & GRINDS
DISPERSION METHOD
VIBRATING HOPPER WITH
VERTICAL DISPERSION
(VACUUM ASSIST FOR)

LIQUID ANALYSIS FLOWCELL
ACCESSORY
PARTICLES SUSPENDED IN LIQUID
30 µm – 1,000 µm
500 NANO

FINE POWDERS
DRY 0.2 µm – 2,000 µm
PHARMACEUTICALS, CHEMICALS
STATIC ANALYSIS
DISPERSION METHOD
PATENTED VACUUM IMPLOSION

LIQUID ANALYSIS FLOWCELL
ACCESSORY
PARTICLES SUSPENDED IN LIQUID
.8 µm – 300 µm
DEDICATED LIQUID ANALYSIS
PARTICLES SUSPENDED IN LIQUID

FC200M

​PARTICLES SUSPENDED IN LIQUID
0.8 µm-800 µm
DISPERSION METHOD
MEMBRANE PUMP (FOR PARTICLES
SUBJECT TO BREAKAGE)
PERILSTATIC PUMP (>500 µm)
FC200S EMULSIONS

PARTICLES SUSPENDED IN LIQUID
0.2 µm / 0.4 µm -1,000 µm
PROTEIN AGGREGATES
DISPERSION METHOD
SYRINGE PUMP
FC200S CMP SLURRY

PARTICLES SUSPENDED IN LIQUID
SLURRIES
0.2 µm- 500 µm
DISPERSION METHOD
SYRINGE PUMP
SPECIAL DEDICATED
APPLICATIONS
SIEVECAL

LABORATORY TEST SIEVE CALIBRATOR
CALIBRATE TEST SIEVES IN HOUSE.
2 MINUTES PER SIEVE.FULL INSPECTION / COMPLIANCE REPORT
OCCHIOSCAN

PARTICLES IN LIQUIDS IN SITU
ANALYZE FIBERS, TEXTURES, AND PARTICLES INSIDE CONTAINERS
