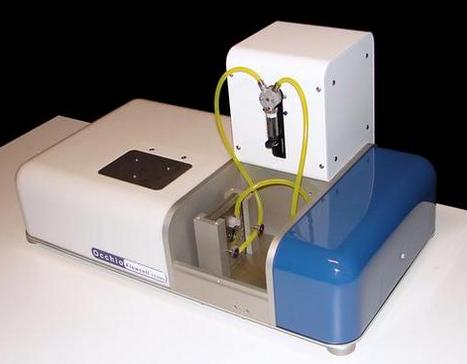

FC200S AUTOMATIC PARTICLE CHARACTERISTIC ANALYZER FOR LIQUIDS AND SUSPENSIONS WITH A SPECIALLY DESIGNED SYRINGE PUMP FOR APPLICATIONS WHERE VERY PRECISE SAMPLING IS REQUIRED.

PARTICLE SIZE PARAMETERS: 200 nm TO 1 mm
STANDARD CAMERA RESOLUTION: 6.6 MILLION PIXELS
PIXEL SIZE: 3.5 MICRONS
HIGH RESOLUTION CAMERA:10 MILLION PIXELS
PIXEL SIZE: 1.67 MICRONS
THIS EASILY MAINTAINED PARALLEL SLIDE FLOWCELL, CAN BE ADJUSTED FROM 50 MICRONS TO 1 MILLIMETER, WITH SPECIAL SPACERS, TO ALLOW FOR THE ACCURATE ANALYSIS OF MATERIALS DOWN TO 200 nm IN SIZE, SUCH AS PROTEIN AGGREGATES.
SPECIAL SYRINGE PUMP FOR PRECISE SAMPLING.

SYRINGE PUMPS AVAILABLE FOR
 .1 ml TO 2.5 ml SAMPLING

NEW! STAND ALONE MEMBRANE PUMP ADD ON MODULE AVAILABLE FOR FC200S

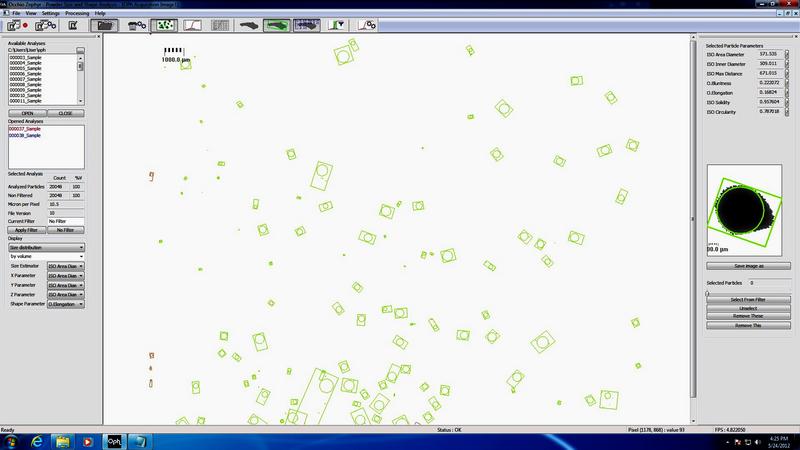

THE EASY TO USE CALLISTO SOFTWARE ALLOWS FOR ROBUST PARTICLE CHARACTERIZATION WITH THE CLICK OF A MOUSE, INCLUDING SEVERAL NEWLY DEFINED SHAPE PARAMETERS.
FC200S (SYRINGE PUMP) BROCHURE
FC200S HIGH RESOLUTION MODEL BROCHURE
FC 200S SYRINGE PUMP MODEL FOR
PRECISE SAMPLING APPLICATIONS 200 nm to 1 mm
NEW ADVANCES IN HIGH RESOLUTION IMAGING!
CALLISTO SOFTWARE
FC 200S (SYRINGE PUMP)
THE FC200S IS PART OF A FAMILY OF HIGHLY SOPHISTICATED DIGITAL IMAGING SYSTEMS, THAT ARE BY PRODUCTS FROM A SERIES OF COLLABORATIVE STUDIES IN LIGHT, OPTICS, AND SAMPLE TRANSPORT, CARRIED OUT WITH THE COOPERATION OF THE UNIVERSITY DE LIEGE IN BELGIUM.
NEW HIGH RESOLUTION IMAGING TECHNOLOGY
This high resolution imaging technology, is accomplished in part, by using special backlighting techniques focused from behind the sample. An adjustable range, monochromatic, blue light source has been shown to provide optimal contrast conditions for the particles, and virtually eliminate diffraction. The light is collimated, and acts as a high definition caliper. In the case of liquids and suspensions, the light flashes simultaneously with a high speed, high definition camera, for extremely robust particle definitions.
OCCHIO FC200S PARTICLE CHARACTERISTIC ANALYZER FOR PARTICLES SUSPENDED IN LIQUID
MONOCHROMATIC COLLIMATED BACKLIGHT ACTS LIKE A CALIPER, AND PROVIDES RESOLUTION UNATTAINABLE WITH WHITE LIGHT OR LASER DIFFRACTION
TELECENTRIC LENS- IMAGE MAGNIFICATION IS INDEPENDENT OF THE OBJECTS DISTANCE OR POSITION IN THE FIELD OF VIEW
Email Address
First Name
Company
Telephone
Last Name
Zip or Postal Code
Telephone
Street Address Line 1
Street Address Line 2
INFORMATION REQUEST
Notes

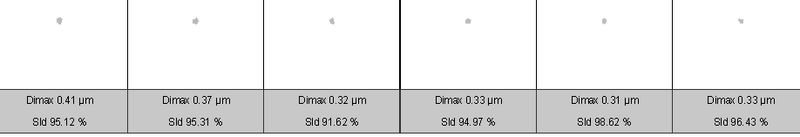

PARTICLE AGGREGATION AT 300 NM (CTRL + TO ZOOM PAGE)
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
866-244-1578 | support@occhio-usa.com
www.occhio-usa.com
BUY PARTS AND ACCESSORIES

NEW ! AUTO SAMPLER
DIGITAL IMAGING EQUIPMENT FOR PARTICLE CHARACTERIZATION IN LIQUIDS AND POWDERS, AND SOLIDS
HOMECONTACT USPRODUCTS

OCCHIO DIGITAL IMAGE ANALYZERS HAVE THE ABILITY TO DETECT AND QUANTIFY BOTH PARTICLE SIZE AND PARTICLE SHAPE, PAVING THE WAY FOR THE ADVANCED ANALYSIS OF PARTICLES IN BOTH LIQUID AND SOLID FORMS.

CORRELATIONS TO OTHER PARTICLE SIZE ANALYSIS METHODS, LIKE SIEVE ANALYSIS AND LASER DIFFRACTION, ARE SEAMLESSLY EMPLOYED. EVEN SHAPE PARAMETERS LIKE LENGTH, FLATNESS, AND ANGULARITY IN AGGREGATES, OR THE LENGTH OF STRINGY PARTICLES LIKE SHREDDED CHEESE, OR TOBACCO, ARE POSSIBLE.

ONCE A BASIC CORRELATION HAS BEEN ESTABLISHED, THE RESULTS ARE FINE TUNED WITH THE OCCHIO CORRELATION PROGRAM, ALLOWING FOR TURNKEY SOLUTIONS TO PARTICLE CHARACTERIZATION.
500 NANO SERIES500 NANO500 NANO PHARMA500 NANO XYCOFFEEE-TRAKFLOWCELL SERIES
FC200 IPACFC200MFC200SCMPSLURRYFC200SHRMORPHO 3-DPHARMA SCANNER
SIEVECALZEPHYR SERIESZEPHYR ESRZEPHYR LDAZEPHYR LDA COFFEE-TRAK

DIGITAL IMAGE ANALYZERS
DOWNLOADS
DIGITAL  PARTICLE
CHARACTERIZATION THEORY
EFFECTS OF DIGITIZATION
ON PARTICLE CHARACTERIZATION
AVAILABLE SIZE AND
SHAPE PARAMETERS
SAMPLE
CHARACTERISTICS

DISPERSION METHODS DESIGNED TO MAINTAIN PARTICLE INTEGRITY
GRANULAR MATERIALS,
POWDERS, LIQUIDS

DRY GRANULAR MATERIALS
SIZE RANGE 500 µm – 10,000 µm
EXAMPLES TABLETS, SEEDS, BEADS
3 DIMENSIONAL ANALYSIS
DISPERSION METHOD
FEEDING HOPPER & CONVEYOR BELT
DRY POWDERS & GRANULARS
THAT TRAVEL WELL IN FLIGHT
7 µm – 5,000 µm
EXAMPLES SUGAR / COFFEE / SAND
DISPERSION METHOD
VIBRATING HOPPER WITH
HORIZONTAL VACUUM DISPERSION
 (FASTER ANALYSIS TIME)
LIQUID ANALYSIS FLOWCELL ACCESSORY
PARTICLES SUSPENDED IN LIQUID 1 µm – 3,000 µm
DRY GRANULARS HEAVIER PARTICLES
30 µm – 30,000 µm
GRAVEL, WOOD CHIPS, SAND
COFFEE BEANS & GRINDS
DISPERSION METHOD
VIBRATING HOPPER WITH
VERTICAL DISPERSION (VACUUM ASSIST FOR DUST REMMOVAL)
LIQUID ANALYSIS FLOWCELL ACCESSORY
PARTICLES SUSPENDED IN LIQUID
30 µm – 1,000 µm
FINE POWDERS
DRY 0.2 µm – 2,000 µm
PHARMACEUTICALS, CHEMICALS
STATIC ANALYSIS
DISPERSION METHOD
PATENTED VACUUM IMPLOSION
LIQUID ANALYSIS FLOWCELL ACCESSORY
PARTICLES SUSPENDED IN LIQUID
.8 µm – 300 µm
DEDICATED LIQUID ANALYSIS
PARTICLES SUSPENDED IN LIQUID

​PARTICLES SUSPENDED IN LIQUID
0.8 µm-800 µm
DISPERSION METHOD
MEMBRANE PUMP (FOR PARTICLES SUBJECT
TO BREAKAGE)
PERILSTATIC PUMP (>500 µm)
PARTICLES SUSPENDED IN LIQUID
0.2 µm / 0.4 µm -1,000 µm
PROTEIN AGGREGATES
DISPERSION METHOD
SYRINGE PUMP
PARTICLES SUSPENDED IN LIQUID
SLURRIES
0.2 µm- 500 µm
DISPERSION METHOD
SYRINGE PUMP
SPECIAL DEDICATED
APPLICATIONS
LABORATORY TEST SIEVE CALIBRATOR
CALIBRATE TEST SIEVES IN HOUSE.
2 MINUTES PER SIEVE.FULL INSPECTION / COMPLIANCE REPORT
PARTICLES IN LIQUIDS IN SITU
ANALYZE FIBERS, TEXTURES, AND PARTICLES INSIDE CONTAINERS
CLICK IMAGE FOR DEMONSTRATION
